FC/PC Ferrule
Model:FC-PC
Product Overview
FC/PC ferrules are designed and manufactured per YD/T1198.1-2014. Available in stainless steel or ceramic, they offer high strength, wear resistance, and aging resistance. With precise machining and excellent consistency, they are ideal for large-core multimode fibers.
Product Specifications
| Parameter Name | FC-S | FC-C |
|---|---|---|
| Core material | Stainless Steel | ceramic |
| Inner Diameter | 125-149μm, tolerance+0～+3 μmconcentricity≤10 μm | |
| 150-449μm, tolerance+0～+5 μmconcentricity≤10 μm | ||
| 450-1100μm, tolerance+0～+10 μmconcentricity≤15 μm | ||
| Cylinder diameter | Cylinder Diameter:2.499mm, tolerance-0.002 to +0.002 mm | |
| Insert length | Insert Length:7.95mm, tolerance+0 to +0.05mm | |
| Pair with loose parts | with metal tail handle | |

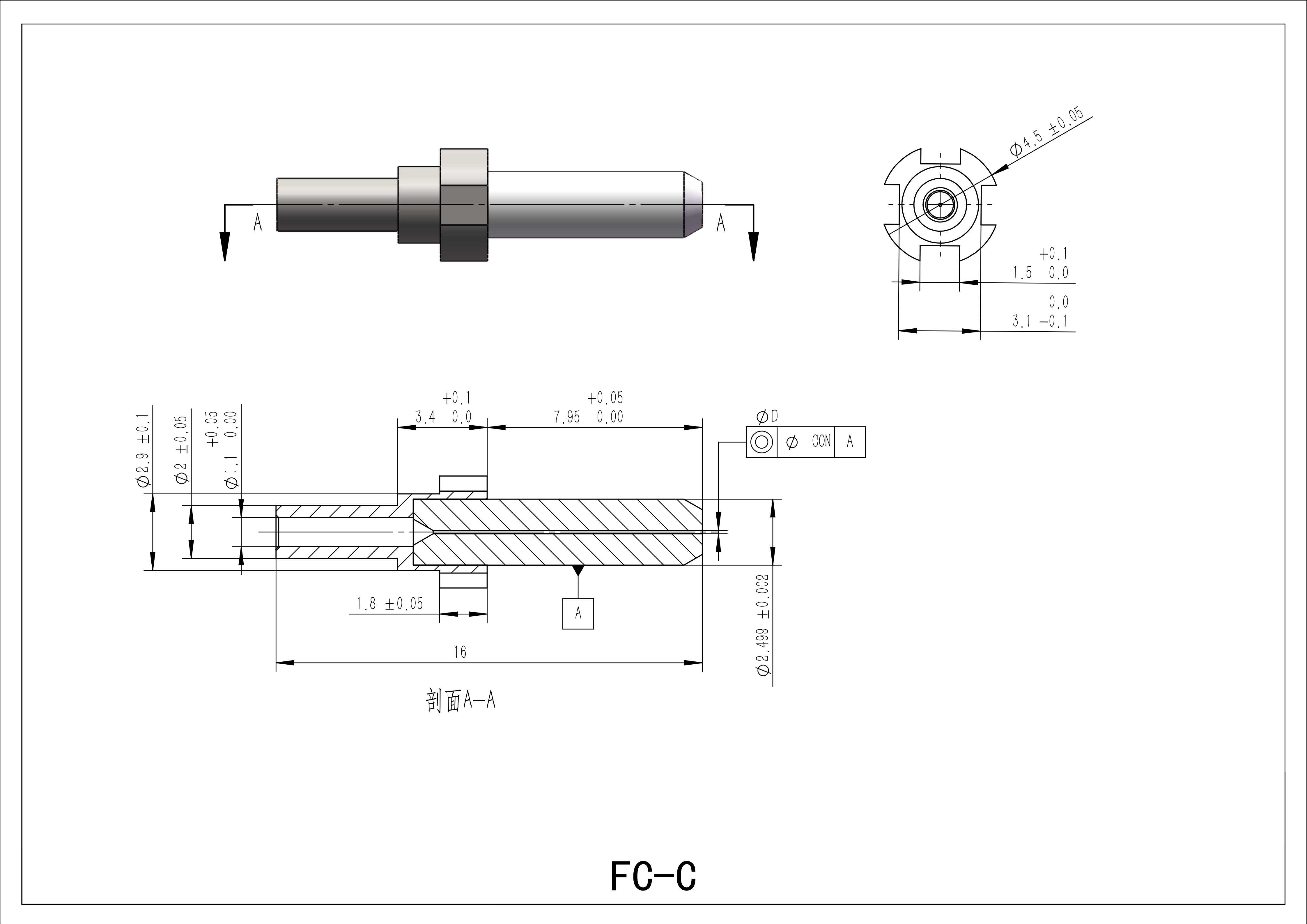

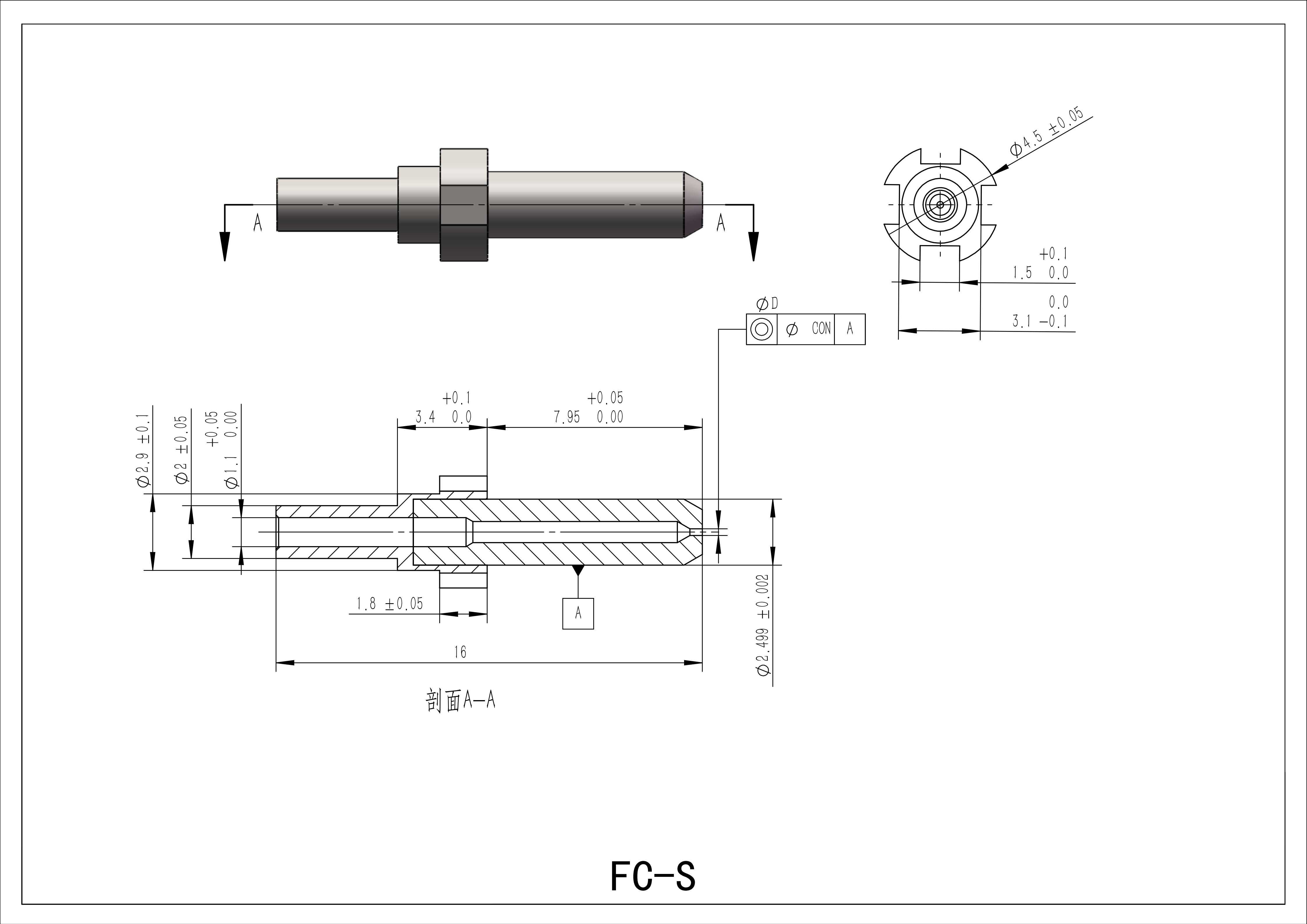

Product Drawings
