SMA905 Standard Connector
Model:SMA905
Product Overview
The SMA905 standard connector, designed and manufactured per GB/T 12507.2-1997, is a non-contact type available with stainless steel or ceramic ferrules. It is suitable for high-power optical signal and laser energy transmission.
Product Specifications
| Parameter Name | SMA905-S | SMA905-C |
|---|---|---|
| Core material | Stainless Steel | ceramic |
| Inner Diameter | 125-149μmwhen, tolerance+0～+3 μmconcentricity≤10 μm | |
| 150-449μmwhen, tolerance+0～+5 μmconcentricity≤10 μm | ||
| 450-1499μmwhen, tolerance+0～+10 μmconcentricity≤15 μm | ||
| 1500-2300μmwhen, tolerance+0～+20 μmconcentricity≤15 μm | ||
| Cylinder diameter | 3.170mm, tolerance-0.004～+0 mm | |
| Insert length | 9.85mm, tolerance+0 to +0.05mm | |
| Pair with loose parts | Knurled Nut / Hex Nut | |
| Collar & 3.0 Black Tail Cap / 6.0 Metal Tail Pipe | ||
| Transparent Dust Cap / Metal Dust Cap | ||

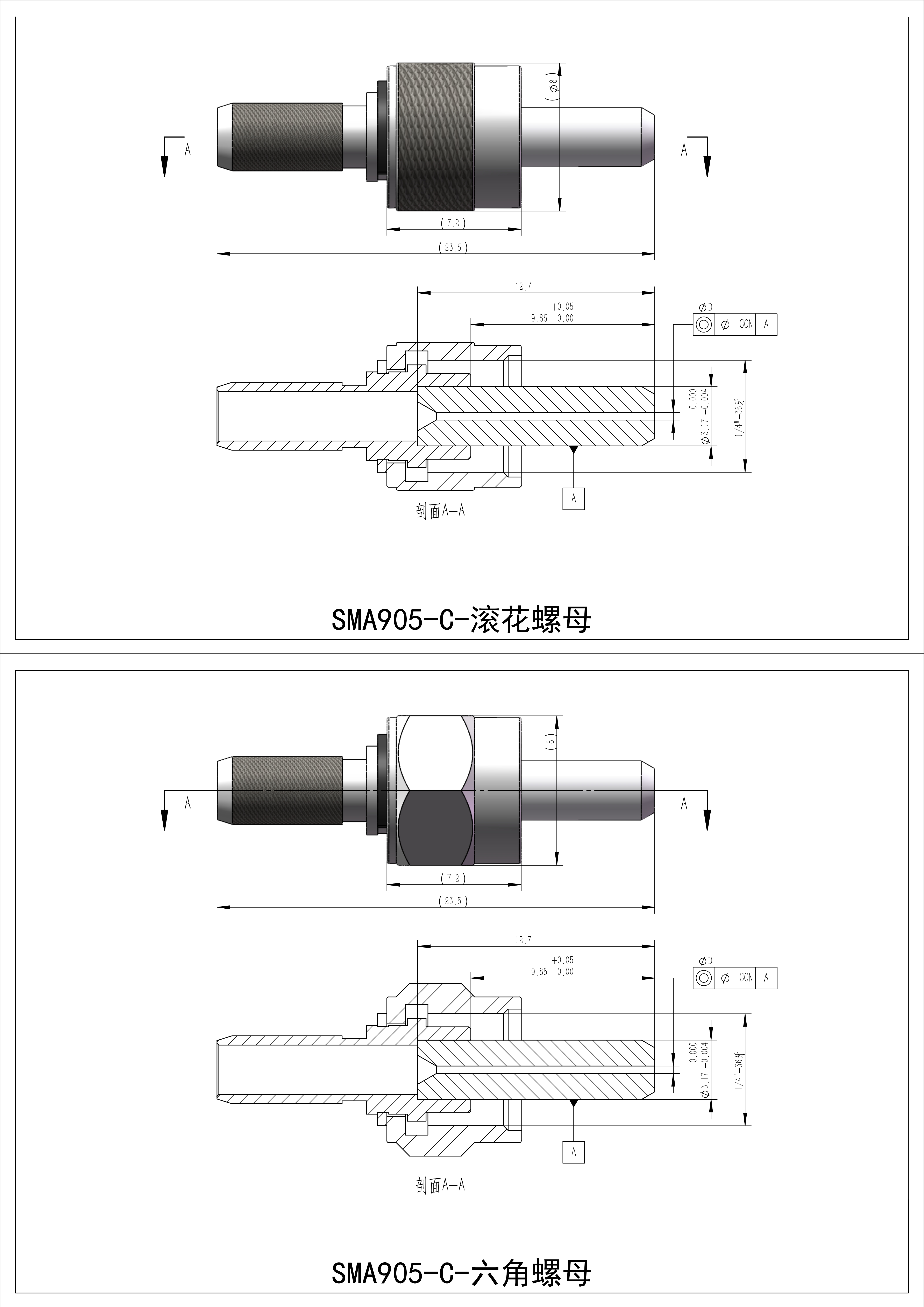

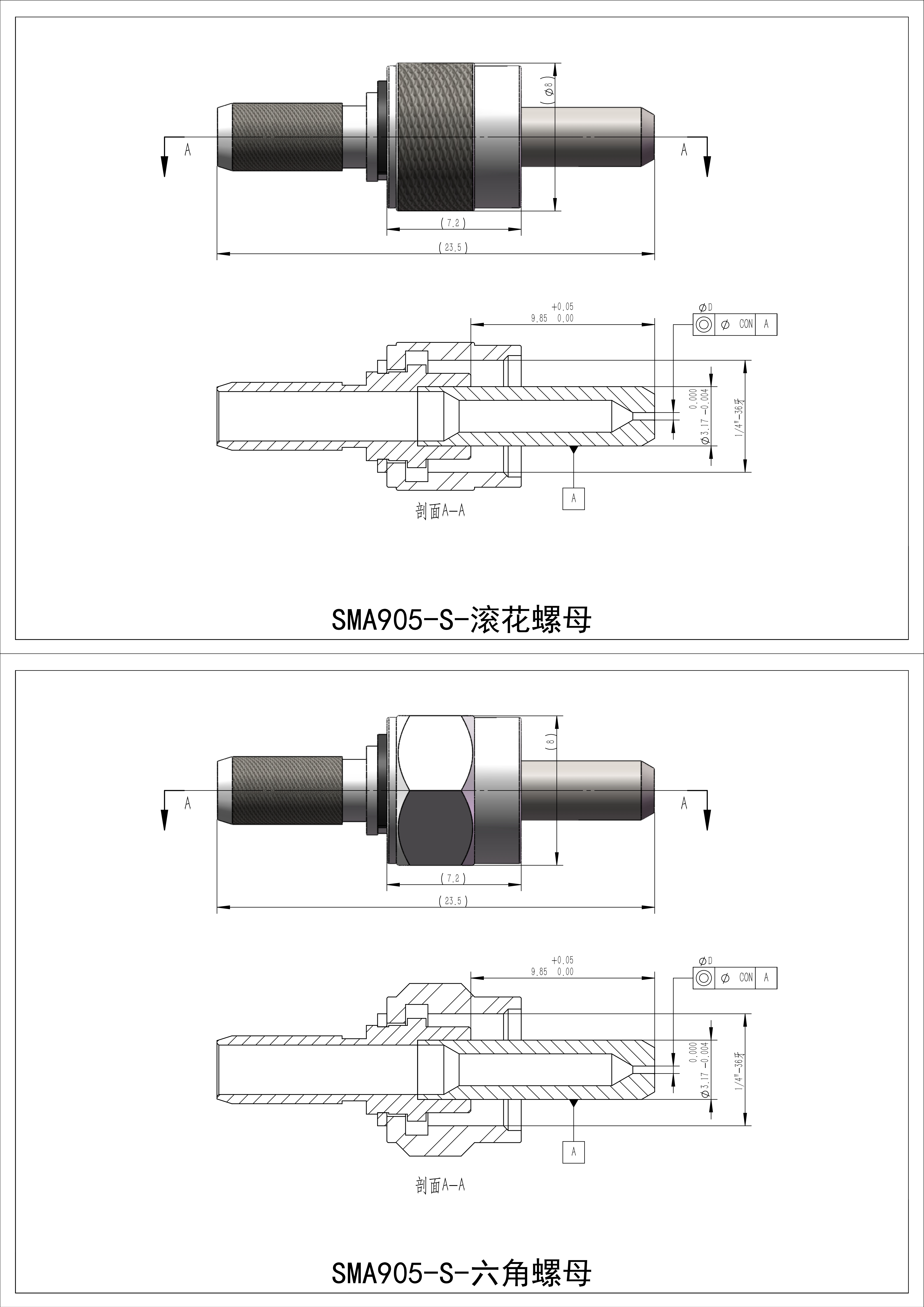

Product Drawings
